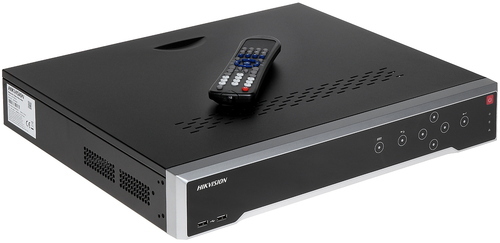

Hikvision Nvr 32 Channel K4
- Up to 32 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 8-ch @ 1080p decoding capacity
- Up to 256 Mbps high incoming bandwidth ensures IP cameras can be connected

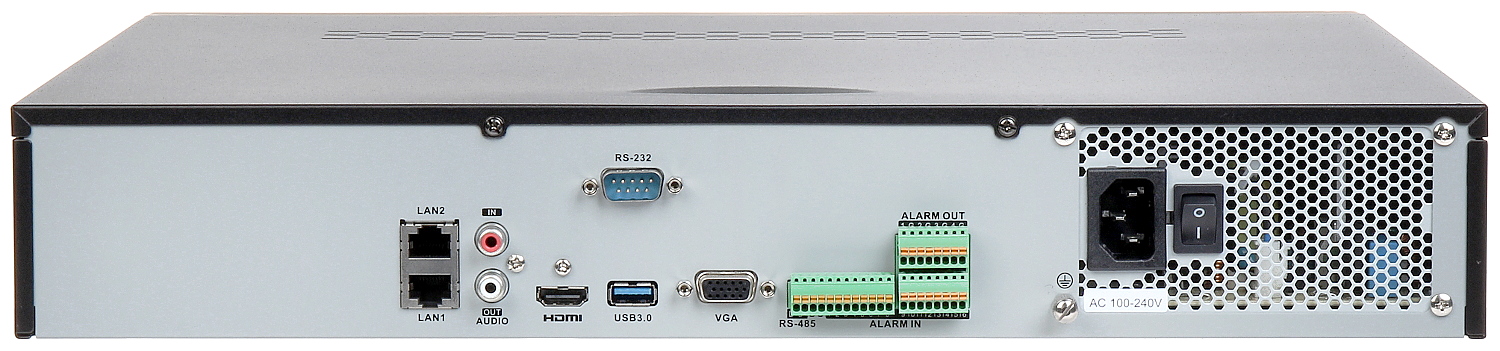

- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 4 HDDs for continuous video recording
- Supports various specific function cameras, including thermal camera /fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
- Channel-zero function ensures smooth remote live view and playback in low bandwidth environments
Description
- Video And Audio
- IP Video Input32-ch
- HDMI Output4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Incoming Bandwidth256 Mbps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ)
- Decoding
- Decoding FormatH.265/H.265+/H.264+/H.264/MPEG4
- Decoding Capability2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
- Synchronous Playback16-ch
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF,/2CIF/CIF/QCIF,
- Network
- Network Protocol
TCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP,
SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- RAID
- RAID TypeNo
- Auxiliary Interface
- SATA4 SATA interfaces
- CapacityUp to 6TB capacity for each HDD
- Serial Interface1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional)
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out16/4
- General
- Power Supply100 to 240 VAC, 50 to 60Hz, 1 A
- Consumption≤ 20 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″)
- ≤ 5 kg (11. lb)
